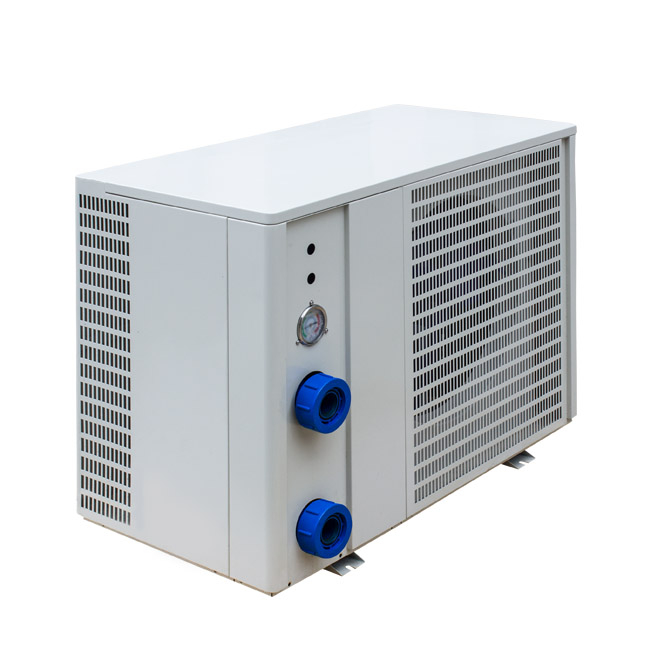

CGY025V3-C; CGY035V3-C; CGY050V3-C; CGY-050V3-C; CGY-080V3-C
SPRSUN
| Model | CGY025V3-C | CGY035V3-C | CGY050V3-C | CGY-050V3-C | CGY-080V3-C | ||||||||||||
| Geadviseerd poolvolume | M3 | 25-40 | 40-80 | 50-100 | 50-100 | 80-140 | |||||||||||
| Stroomvoorziening | V/Hz/pH | 220-240/50/1 | 220-240/50/1 | 220-240/50/1 | 380-420/50/3 | 380-420/50/3 | |||||||||||
| Koelmiddel | R32 | R32 | R32 | R32 | R32 | ||||||||||||
| Max. Verwarmingscapaciteit (1) | kw | 10.5 | 17 | 28 | 28 | 39 | |||||||||||
| COP (1) | W/w | 7.12 | 7.15 | 7.08 | 7.11 | 7.1 | |||||||||||
| Verwarmingscapaciteit min./max.(1) | kw | 1.68 | / | 10.5 | 2.72 | / | 17 | 4.48 | / | 28 | 4.48 | / | 28 | 6.24 | / | 39 | |
| Verwarmingsvermogeninvoer min./max.(1) | W | 93 | / | 1475 | 149 | / | 2378 | 248 | / | 3955 | 247 | / | 3938 | 345 | / | 5493 | |
| Cop min./max.(1) | W/w | 7.12 | / | 18.16 | 7.15 | / | 18.23 | 7.08 | / | 18.05 | 7.11 | / | 18.13 | 7.1 | / | 18.11 | |
| Max. Verwarmingscapaciteit (2) | kw | 7.6 | 12.2 | 20.2 | 20.2 | 28.1 | |||||||||||
| Cop (2) | W/w | 4.95 | 4.97 | 4.92 | 4.94 | 4.93 | |||||||||||
| Verwarmingscapaciteit min./max.(2) | kw | 1.36 | / | 7.56 | 2.20 | / | 12.24 | 3.63 | / | 20.16 | 3.63 | / | 20.16 | 5.05 | / | 28.08 | |
| Verwarmingsvermogeninvoer min./max.(2) | W | 167 | / | 1528 | 269 | / | 2463 | 447 | / | 4097 | 445 | / | 4080 | 620 | / | 5691 | |
| Cop min./max.(2) | W/w | 4.95 | / | 8.17 | 4.97 | / | 8.20 | 4.92 | / | 8.12 | 4.94 | / | 8.16 | 4.93 | / | 8.15 | |
| Max. Koelcapaciteit (3) | kw | 5.8 | 9.4 | 15.4 | 15.4 | 21.5 | |||||||||||
| EER (3) | W/w | 3.22 | 3.23 | 3.20 | 3.21 | 3.21 | |||||||||||
| Koelcapaciteit min./max.(3) | kw | 2.66 | / | 5.78 | 4.30 | / | 9.35 | 7.08 | / | 15.40 | 7.08 | / | 15.40 | 9.87 | / | 21.45 | |
| Koelingstroominvoer min./max.(3) | W | 551 | / | 1795 | 888 | / | 2895 | 1477 | / | 4815 | 1470 | / | 4795 | 2051 | / | 6688 | |
| EER MIN./MAX.(3) | W/w | 3.22 | / | 4.82 | 3.23 | / | 4.85 | 3.20 | / | 4.80 | 3.21 | / | 4.82 | 3.21 | / | 4.81 | |
| Nominale stroom | A | 7.1 | 11.4 | 18.9 | 8.3 | 11.6 | |||||||||||
| Maximale stroom | A | 10.2 | 16.5 | 27.44 | 12.05 | 16.81 | |||||||||||
| Max Power Input | kw | 2.09 | 3.38 | 5.62 | 5.59 | 7.80 | |||||||||||
| Compressor | Type - hoeveelheid/systeem | Twin Rotary - 1 | Twin Rotary - 1 | Twin Rotary - 1 | Twin Rotary - 1 | Twin Rotary - 1 | |||||||||||
| Fan | Hoeveelheid | 1 | 1 | 1 | 1 | 2 | |||||||||||
| Luchtstroom | M3/H | 2000 | 2800 | 4000 | 4000 | 6000 | |||||||||||
| Nominale kracht | W | 40 | 80 | 200 | 200 | 250 | |||||||||||
| Waterzijde warmtewisselaar | Type | Titanium buis in PVC | Titanium buis in PVC | Titanium buis in PVC | Titanium buis in PVC | Titanium buis in PVC | |||||||||||
| Waterdrukval | kpa | 9.5 | 11 | 20 | 20 | 25 | |||||||||||
| Leidingverbinding | mm | φ50 | φ50 | φ50 | φ50 | φ50 | |||||||||||
| Toegestane waterstroom | Min./rated./max | L/s | 0.63 | 1.00 | 1.25 | 1.02 | 1.62 | 2.03 | 1.67 | 2.68 | 3.34 | 1.67 | 2.68 | 3.34 | 2.33 | 3.73 | 4.66 |
| Geluidsniveau | DB (A) | 45 | 52 | 58 | 58 | 62 | |||||||||||
| Netto dimensie (L × D × H) | mm | 930*380*670 | 1090*510*820 | 1090*510*1000 | 1090*510*1000 | 1090*550*1100 | |||||||||||
| Verpakkingsdimensie (L × D × H) | mm | 960*410*770 | 1120*540*930 | 1120*540*1120 | 1120*540*1120 | 1120*540*1230 | |||||||||||
| Netto gewicht | kg | 64 | 92 | 124 | 124 | 150 | |||||||||||
| Grof gewicht | kg | 67 | 97 | 135 | 163 | 176 | |||||||||||
| Opmerking: (1) Performance Condition: Lucht 27 ℃/water 26 ℃/Vochtigheid 80% | |||||||||||||||||
| (2) Performance -toestand: lucht 15 ℃/water 26 ℃/vochtigheid 70% | |||||||||||||||||
| (3) Performance Condition: Lucht 35 ℃/water 28 ℃/Vochtigheid 64% | |||||||||||||||||
